pIRES2- DsRed2 2ug

https://www.gentaur.be/web/image/product.template/3593/image_1920?unique=14d810e
(0 review)

£ 0.00 0.0 GBP £ 0.00 VAT Excluded

458.00 € VAT Excluded

info@gentaur.com

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    pIRES2-DsRed2

    Catalog No. PVT10757
    Packing 2ug



    pIRES2-DsRed2 Information
    Function Mammalian fluorescent plasmidPromoter: CMV promoter
    Terminator: SV40 poly A
    Plasmid size: 5264bp
    Prokaryotic resistance: Kanamycin Kan
    Filtering Mark: Neomycin Neo/G418
    Cloning strain: E. coli DH5α
    Culture conditions: 37°C, aerobic, LB



    pIRES2-DsRed2 Description

    pIRES2-DsRed2 is a mammalian red fluorescent protein overexpression vector. Through the action of IRES2, the target gene and DsRed2 red fluorescent protein are translated under the same promoter, but no fusion protein is formed.

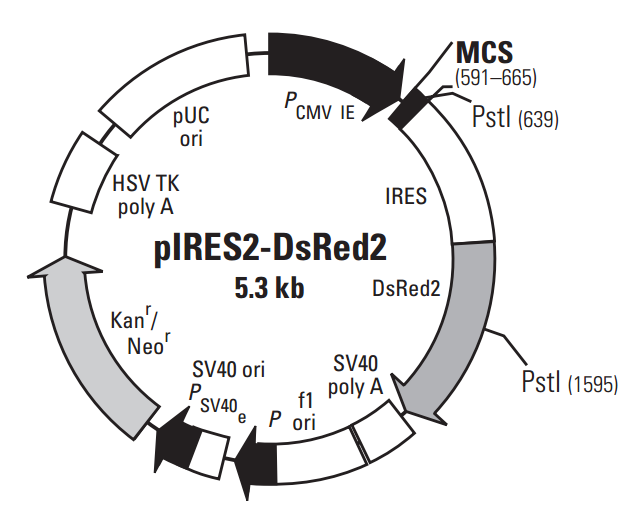

    pIRES2-DsRed2 Sequence

    LOCUS       Exported                5264 bp ds-DNA    circular SYN 22-10-2015

    KEYWORDS    Untitled 2

    SOURCE      synthetic DNA construct

      ORGANISM  synthetic DNA construct

    REFERENCE   1  (bases 1 to 5264)

      AUTHORS   admin

      TITLE     Direct Submission

    FEATURES             Location/Qualifiers

         source          1..5264

                         /organism="synthetic DNA construct"

                         /mol_type="other DNA"

         enhancer        61..364

                         /note="CMV enhancer"

                         /note="human cytomegalovirus immediate early enhancer"

         promoter        365..568

                         /note="CMV promoter"

                         /note="human cytomegalovirus (CMV) immediate early

                         promoter"

         misc_feature    609..665

                         /note="MCS"

                         /note="multiple cloning site"

         misc_feature    667..1253

                         /note="IRES2"

                         /note="internal ribosome entry site (IRES) of the

                         encephalomyocarditis virus (EMCV)"

         CDS             1254..1931

                         /codon_start=1

                         /product="improved tetrameric variant of DsRed fluorescent

                         protein"

                         /note="DsRed2"

                         /note="mammalian codon-optimized"

                         /translation="MASSENVITEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTVK

                         LKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDGGV

                         ATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGETHK

                         ALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDAKLDITSHNEDYTIVEQYERTEGRHH

                         LFL"

         polyA_signal    2052..2173

                         /note="SV40 poly(A) signal"

                         /note="SV40 polyadenylation signal"

         rep_origin      complement(2180..2635)

                         /direction=LEFT

                         /note="f1 ori"

                         /note="f1 bacteriophage origin of replication; arrow

                         indicates direction of (+) strand synthesis"

         promoter        2662..2766

                         /gene="bla"

                         /note="AmpR promoter"

         promoter        2768..3125

                         /note="SV40 promoter"

                         /note="SV40 enhancer and early promoter"

         rep_origin      2976..3111

                         /note="SV40 ori"

                         /note="SV40 origin of replication"

         CDS             3160..3954

                         /codon_start=1

                         /gene="aph(3')-II (or nptII)"

                         /product="aminoglycoside phosphotransferase from Tn5"

                         /note="NeoR/KanR"

                         /note="confers resistance to neomycin, kanamycin, and G418

                         (Geneticin(R))"

                         /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP

                         VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS

                         SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ

                         GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA

                         LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"

         polyA_signal    4186..4233

                         /note="HSV TK poly(A) signal"

                         /note="herpesvirus thymidine kinase polyadenylation signal"

         rep_origin      4562..5150

                         /direction=RIGHT

                         /note="ori"

                         /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of

                         replication"

    ORIGIN

            1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg

           61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt

          121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca

          181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc

          241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta

          301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac

          361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg

          421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg

          481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt

          541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta

          601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg

          661 gatccgcccc tctccctccc ccccccctaa cgttactggc cgaagccgct tggaataagg

          721 ccggtgtgcg tttgtctata tgttattttc caccatattg ccgtcttttg gcaatgtgag

          781 ggcccggaaa cctggccctg tcttcttgac gagcattcct aggggtcttt cccctctcgc

          841 caaaggaatg caaggtctgt tgaatgtcgt gaaggaagca gttcctctgg aagcttcttg

          901 aagacaaaca acgtctgtag cgaccctttg caggcagcgg aaccccccac ctggcgacag

          961 gtgcctctgc ggccaaaagc cacgtgtata agatacacct gcaaaggcgg cacaacccca

         1021 gtgccacgtt gtgagttgga tagttgtgga aagagtcaaa tggctctcct caagcgtatt

         1081 caacaagggg ctgaaggatg cccagaaggt accccattgt atgggatctg atctggggcc

         1141 tcggtgcaca tgctttacat gtgtttagtc gaggttaaaa aaacgtctag gccccccgaa

         1201 ccacggggac gtggttttcc tttgaaaaac acgatgataa tatggccaca accatggcct

         1261 cctccgagaa cgtcatcacc gagttcatgc gcttcaaggt gcgcatggag ggcaccgtga

         1321 acggccacga gttcgagatc gagggcgagg gcgagggccg cccctacgag ggccacaaca

         1381 ccgtgaagct gaaggtgacc aagggcggcc ccctgccctt cgcctgggac atcctgtccc

         1441 cccagttcca gtacggctcc aaggtgtacg tgaagcaccc cgccgacatc cccgactaca

         1501 agaagctgtc cttccccgag ggcttcaagt gggagcgcgt gatgaacttc gaggacggcg

         1561 gcgtggcgac cgtgacccag gactcctccc tgcaggacgg ctgcttcatc tacaaggtga

         1621 agttcatcgg cgtgaacttc ccctccgacg gccccgtgat gcagaagaag accatgggct

         1681 gggaggcctc caccgagcgc ctgtaccccc gcgacggcgt gctgaagggc gagacccaca

         1741 aggccctgaa gctgaaggac ggcggccact acctggtgga gttcaagtct atctacatgg

         1801 ccaagaagcc cgtgcagctg cccggctact actacgtgga cgccaagctg gacatcacct

         1861 cccacaacga ggactacacc atcgtggagc agtacgagcg caccgagggc cgccaccacc

         1921 tgttcctgta gcggccgcga ctctagatca taatcagcca taccacattt gtagaggttt

         1981 tacttgcttt aaaaaacctc ccacacctcc ccctgaacct gaaacataaa atgaatgcaa

         2041 ttgttgttgt taacttgttt attgcagctt ataatggtta caaataaagc aatagcatca

         2101 caaatttcac aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca

         2161 tcaatgtatc ttaaggcgta aattgtaagc gttaatattt tgttaaaatt cgcgttaaat

         2221 ttttgttaaa tcagctcatt ttttaaccaa taggccgaaa tcggcaaaat cccttataaa

         2281 tcaaaagaat agaccgagat agggttgagt gttgttccag tttggaacaa gagtccacta

         2341 ttaaagaacg tggactccaa cgtcaaaggg cgaaaaaccg tctatcaggg cgatggccca

         2401 ctacgtgaac catcacccta atcaagtttt ttggggtcga ggtgccgtaa agcactaaat

         2461 cggaacccta aagggagccc ccgatttaga gcttgacggg gaaagccggc gaacgtggcg

         2521 agaaaggaag ggaagaaagc gaaaggagcg ggcgctaggg cgctggcaag tgtagcggtc

         2581 acgctgcgcg taaccaccac acccgccgcg cttaatgcgc cgctacaggg cgcgtcaggt

         2641 ggcacttttc ggggaaatgt gcgcggaacc cctatttgtt tatttttcta aatacattca

         2701 aatatgtatc cgctcatgag acaataaccc tgataaatgc ttcaataata ttgaaaaagg

         2761 aagagtcctg aggcggaaag aaccagctgt ggaatgtgtg tcagttaggg tgtggaaagt

         2821 ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca

         2881 ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg catctcaatt

         2941 agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact ccgcccagtt

         3001 ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag gccgaggccg

         3061 cctcggcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc ctaggctttt

         3121 gcaaagatcg atcaagagac aggatgagga tcgtttcgca tgattgaaca agatggattg

         3181 cacgcaggtt ctccggccgc ttgggtggag aggctattcg gctatgactg ggcacaacag

         3241 acaatcggct gctctgatgc cgccgtgttc cggctgtcag cgcaggggcg cccggttctt

         3301 tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc aagacgaggc agcgcggcta

         3361 tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc tcgacgttgt cactgaagcg

         3421 ggaagggact ggctgctatt gggcgaagtg ccggggcagg atctcctgtc atctcacctt

         3481 gctcctgccg agaaagtatc catcatggct gatgcaatgc ggcggctgca tacgcttgat

         3541 ccggctacct gcccattcga ccaccaagcg aaacatcgca tcgagcgagc acgtactcgg

         3601 atggaagccg gtcttgtcga tcaggatgat ctggacgaag agcatcaggg gctcgcgcca

         3661 gccgaactgt tcgccaggct caaggcgagc atgcccgacg gcgaggatct cgtcgtgacc

         3721 catggcgatg cctgcttgcc gaatatcatg gtggaaaatg gccgcttttc tggattcatc

         3781 gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca tagcgttggc tacccgtgat

         3841 attgctgaag agcttggcgg cgaatgggct gaccgcttcc tcgtgcttta cggtatcgcc

         3901 gctcccgatt cgcagcgcat cgccttctat cgccttcttg acgagttctt ctgagcggga

         3961 ctctggggtt cgaaatgacc gaccaagcga cgcccaacct gccatcacga gatttcgatt

         4021 ccaccgccgc cttctatgaa aggttgggct tcggaatcgt tttccgggac gccggctgga

         4081 tgatcctcca gcgcggggat ctcatgctgg agttcttcgc ccaccctagg gggaggctaa

         4141 ctgaaacacg gaaggagaca ataccggaag gaacccgcgc tatgacggca ataaaaagac

         4201 agaataaaac gcacggtgtt gggtcgtttg ttcataaacg cggggttcgg tcccagggct

         4261 ggcactctgt cgatacccca ccgagacccc attggggcca atacgcccgc gtttcttcct

         4321 tttccccacc ccacccccca agttcgggtg aaggcccagg gctcgcagcc aacgtcgggg

         4381 cggcaggccc tgccatagcc tcaggttact catatatact ttagattgat ttaaaacttc

         4441 atttttaatt taaaaggatc taggtgaaga tcctttttga taatctcatg accaaaatcc

         4501 cttaacgtga gttttcgttc cactgagcgt cagaccccgt agaaaagatc aaaggatctt

         4561 cttgagatcc tttttttctg cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac

         4621 cagcggtggt ttgtttgccg gatcaagagc taccaactct ttttccgaag gtaactggct

         4681 tcagcagagc gcagatacca aatactgtcc ttctagtgta gccgtagtta ggccaccact

         4741 tcaagaactc tgtagcaccg cctacatacc tcgctctgct aatcctgtta ccagtggctg

         4801 ctgccagtgg cgataagtcg tgtcttaccg ggttggactc aagacgatag ttaccggata

         4861 aggcgcagcg gtcgggctga acggggggtt cgtgcacaca gcccagcttg gagcgaacga

         4921 cctacaccga actgagatac ctacagcgtg agctatgaga aagcgccacg cttcccgaag

         4981 ggagaaaggc ggacaggtat ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg

         5041 agcttccagg gggaaacgcc tggtatcttt atagtcctgt cgggtttcgc cacctctgac

         5101 ttgagcgtcg atttttgtga tgctcgtcag gggggcggag cctatggaaa aacgccagca

         5161 acgcggcctt tttacggttc ctggcctttt gctggccttt tgctcacatg ttctttcctg

         5221 cgttatcccc tgattctgtg gataaccgta ttaccgccat gcat

    //



    Caution:
    1.  This product is FOR RESEARCH USE ONLY!
    2.  The item is lyophilized form, Please take the powder plasmid by centrifugation at 5000rpm/min for 1min. Add 20μl ddH2O in to the tube of plasmid.
